Single screw extruder

This machine is mainly used to extrude thermoplastic plastics such as soft & rigid PVC, and PE, etc. If work with proper auxiliaries (including forming die), it can be sued to make many kinds of plastic products such as film, pipe, rod, board, filament, cable insulating layer and hollow products, etc. Also it can be used for granulation.

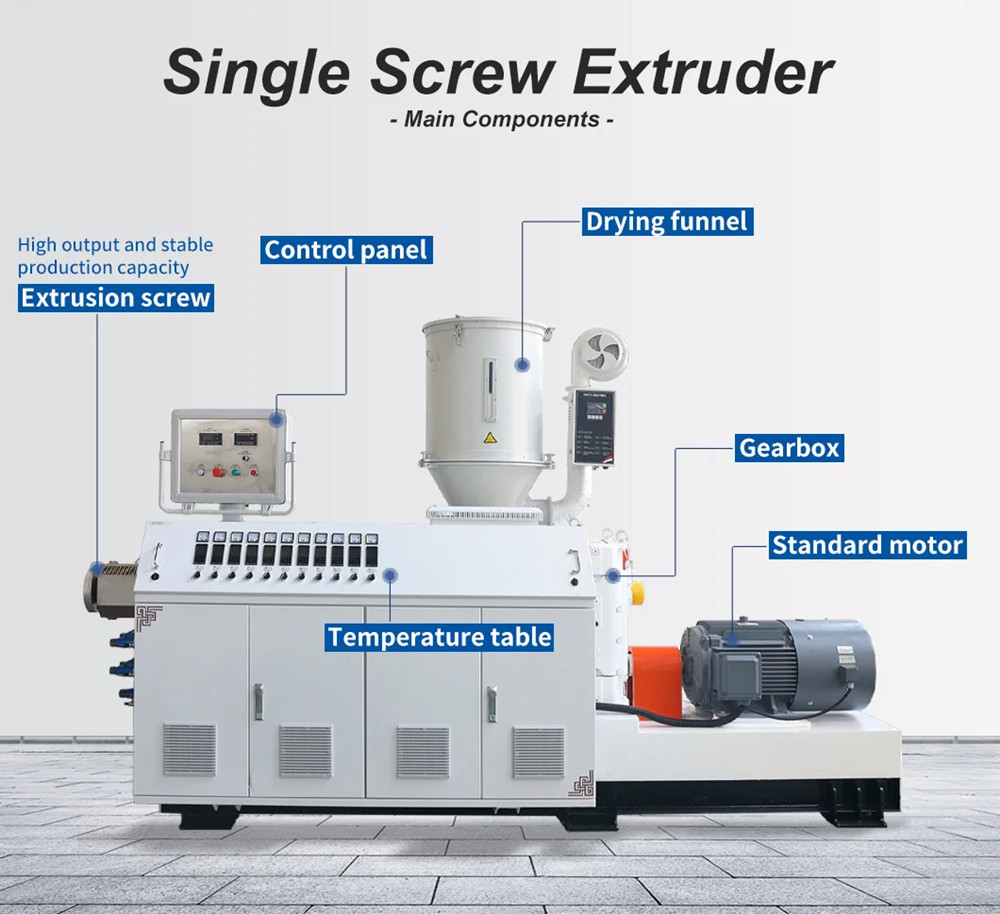

Single screw extruder

Product Features

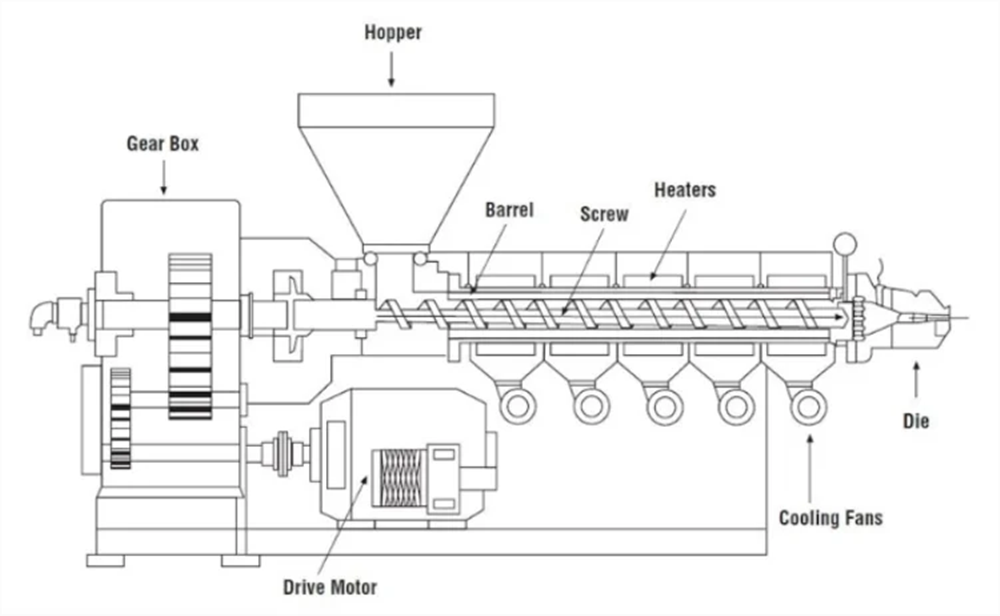

Extruding machine: single screw extruder uses slot barrel and new type high efficient BM screw with high rotating speed, high output and strong plastification.
The advantages of this machine are as follows: advanced design, high output, good plastification, low energy consumption, etc. It uses involute gear for driving resulting in low noise, running stably, high bearing capacity and long service life, etc.
There are many kinds of electric control system for choice such as PLC auto control system, the production speed will be high and stable. Also the control system will be easy to operate.

Main technical parameter

Product Name	Screw diameter (mm)	L/D	Motor power kW	uOtput Torque(N.M)	Screw speed (r/min)	Max output (kg/h)
SJ25/25	25	25:1	1.5	175	100	3.4
SJ30/25	30	25:1	5.5	410	125	12.5
SJ45/25	45	25:1	7.5	580	100	20
SJ45/30A	45	30:1	15	1000	145	40
SJ45/30C	45	30:1	30	1600	185	120
SJ65/25	65	25:1	22	1500	100	60
SJ65/30	65	30:1	30	3600	105	80
SJ65/30	65	30:1	45	4800	120	120
SJ75/32	75	32:1	90	7200	120	350
SJ90/25	90	25:1	55	4400	120	150

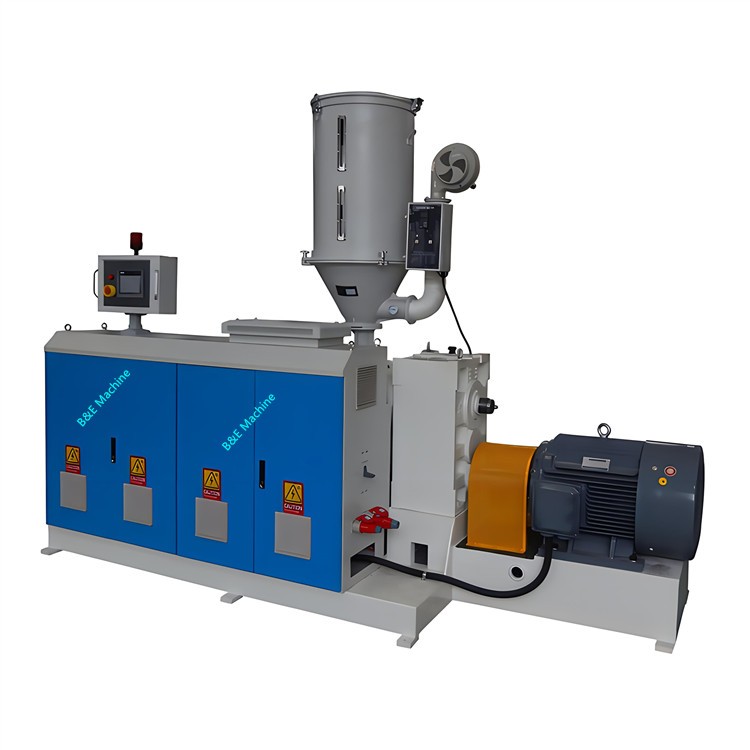

SJ series single screw extruder：

SJ series single screw extruder mainly apply to extrude PP, PE, PET, PVC, ABSPS, PA etc material. It adopt special gear box, and has features of low noisy, stable running, high carrying capacity, long service life. Equipped with different mold and auxiliary equipments, it could produce plastic pipe, sheet, board, granules and so on. It has features of simple process, high output, stable extrusion pressure, and low cost.


Zhangjiagang B&E machinery Co., Ltd is a comprehensive manufacturing company in China. Our company is a professional manufacturer of high quality pelletizing extruders for coloring /dyeing and masterbat ch production, as well as plastic modification and compounding,plastic recycling. Innovative machines are built as per the concept of durability, high efficiency and economical power consumption.Our Core value: Market is the direction of enterprise, and quality is the life of enterprise.
