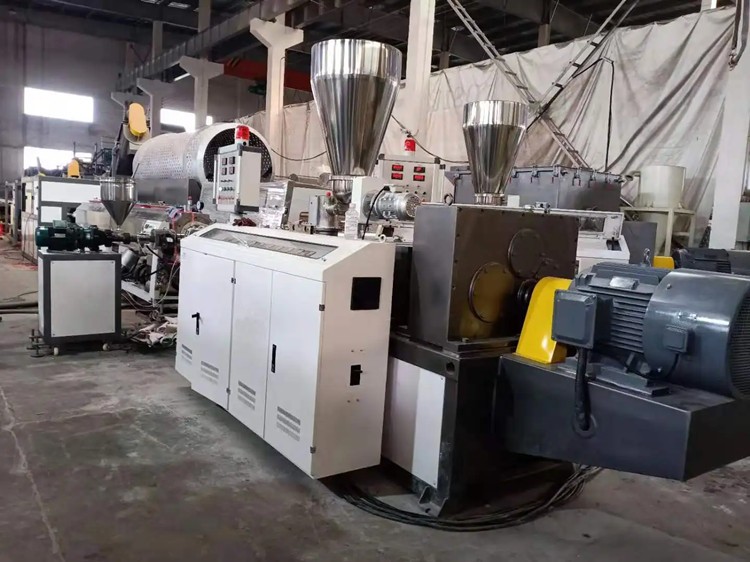

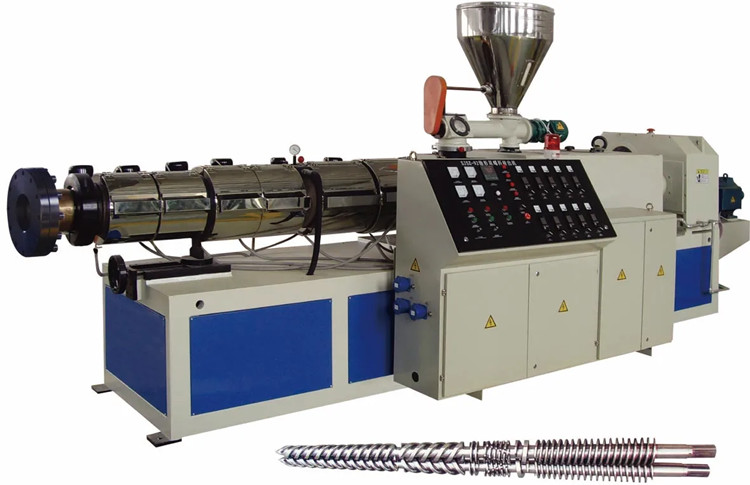

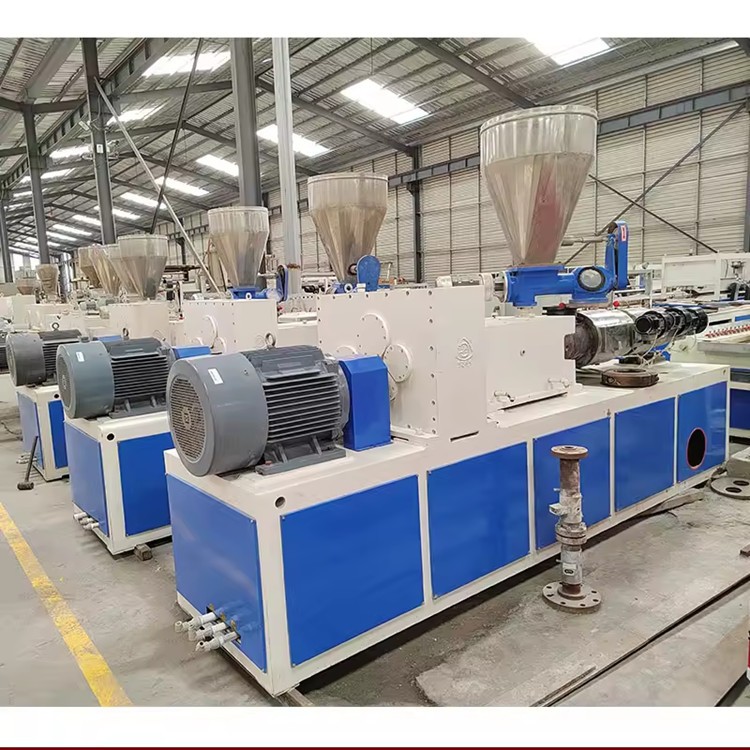

Conical Twin Screw Extruder

This extruder is equipped with AC motor, auto temperature controller, vacuum exhausting device etc. This production line is suitable for production of plastic pipe, plate and profile and etc.

Conical Twin Screw Extruder

Properties and Structure:

The conical twin-screw extruder is an important component in extrusion of PVC production. High quality conical twin-screw extruder , advance unique screw with effective plasticization and the science design ensure high efficiency extrusion of PVC.

The ideal of flexible plasticization ensure the good quality of PVC pipe, profile, sheets, etc; Dependable and the external cycling temperature control system of two stage screw core confirm the production of high quality PVC production in different prescription;

With computer control system ensure stable running of the machine and good production.

Conical Twin Screw Extruder4.jpg

Main technical parameter

SPECIFICA\ MODE	SJSZ-45	SJSZ-50	SJSZ-55	SJSZ-65	SJSZ-80	SJSZ-92
Diameter of screws(mm)	45/90	50/105	55/110	65/132	80/156	92/188
L/D	14.5	14.5	14.5	14.6	15.25	17.86
Speed of screws	3-34	3-37	3-37	3.9-39	3.9-39	4-40
Main motor(kw)	18.5	22	27	37	55	100
Barrel heating power(kw)	15	10	18	28	38	70
Production(kg/h)	100	120	150	260	400	800
Centre height of machine(mm)	1000	1000	1000	1000	1000	1100
Net weight(kg)	3000	3200	3500	4000	5000	7000

Conical Twin Screw Extruder5.jpg

Features：

Screw Element

The screw and barrel are the plasticizing parts of the extruder, which are the core parts related to the plasticization, dispersion, and physical properties of materials. B&E can provide

professional process suggestions and suitable screw combinations based on customers’specific production requirements. In response to the wear or corrosion environment of

materials, B&E can provide professional recommendations on screw elements/barrel sleeve materials, recommending the most cost-effective material applications.

Barrel Sleeve

The heating and cooling efficiency of the barrel is also a key performance of the extruder. especially PC and ABS materials with high whiteness requirements are very sensitive to the actual effect of temperature control!


Zhangjiagang B&E machinery Co., Ltd is a comprehensive manufacturing company in China. Our company is a professional manufacturer of high quality pelletizing extruders for coloring /dyeing and masterbat ch production, as well as plastic modification and compounding,plastic recycling. Innovative machines are built as per the concept of durability, high efficiency and economical power consumption.Our Core value: Market is the direction of enterprise, and quality is the life of enterprise.
