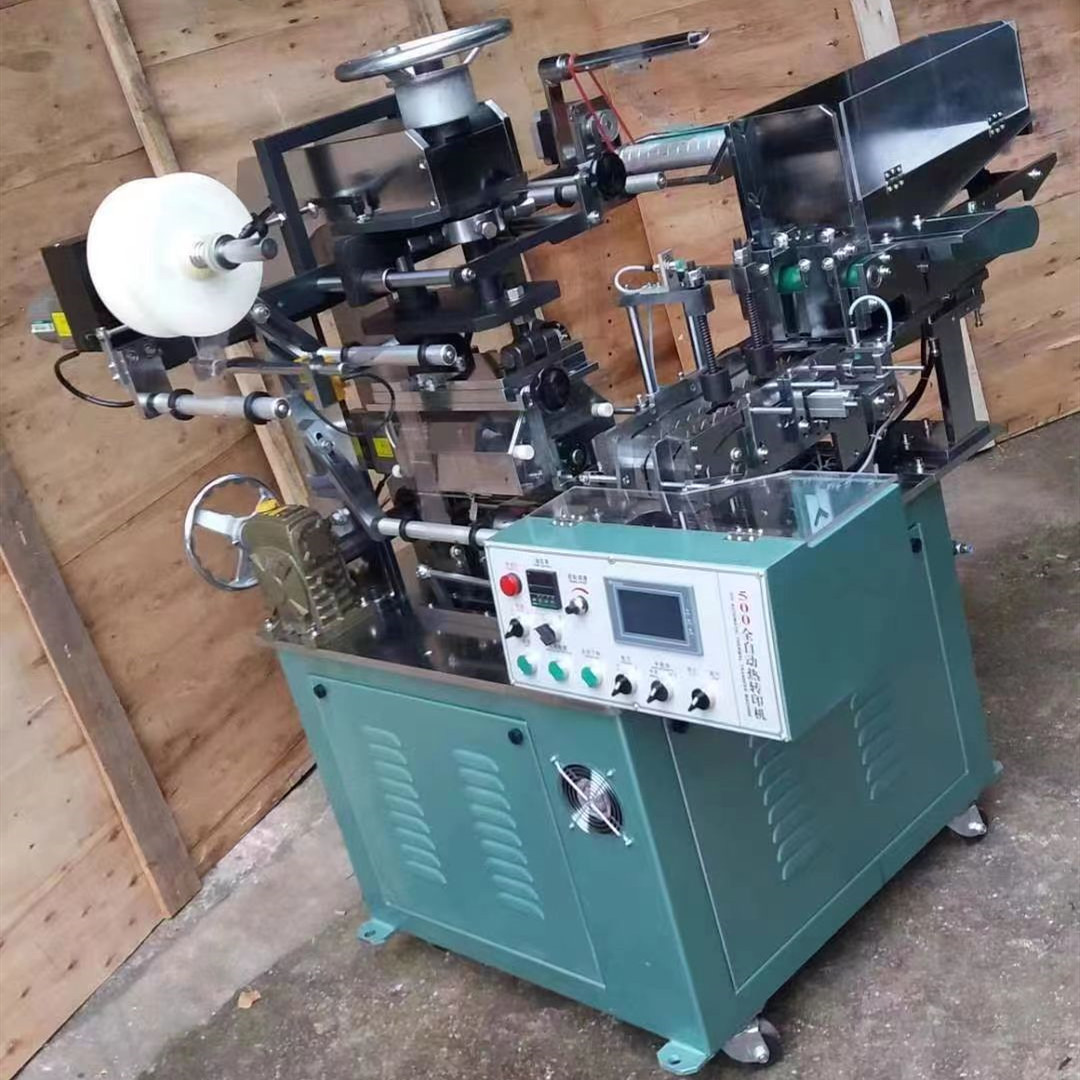

Pen barrel hot heater print machine

A whiteboard marker heat transfer machine is a specialized device designed for the heat transfer printing of whiteboard markers. It utilizes the principle of heat and pressure to transfer patterns, logos, text, and other designs from heat transfer paper onto the surface of whiteboard markers.

machine characteristic:This machine is a kind of new-developed machine that is designed for meeting the

rapid development of pen industry. It can realize the precise circumferential location for the labeled penholder that is with

small gap or round hole, the whole machine adopts the mechanical driving theory, which sharply improves its reliability.

The locating fiber chooses the new fiber that is developed latest in the world. The film winding and location system both

ad opt PLC control, which can enjoy the advantages of accurate location, fast seppd, excellent transfer printing effcet

and stable performance. After it is put into the market, is has acquired the flavor of vast pen manufacturers.

Machine type	MS-RC200
Machine power	220V/50Hz
Machine speed	50-60pcs/min
Machine power	2.5KW
Machine air source	6-8Pcs/min
Boundary dimension	1550×850×1450mm
Machine weight	650kg
