Ball Point Pen Making Machine/Pen production Equipment

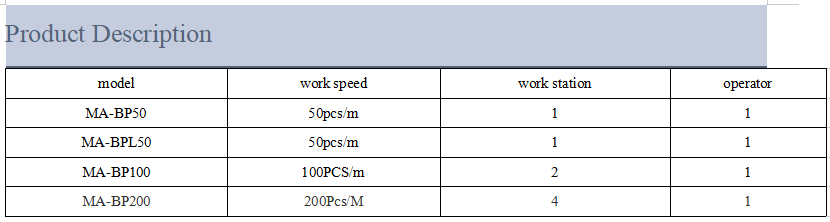

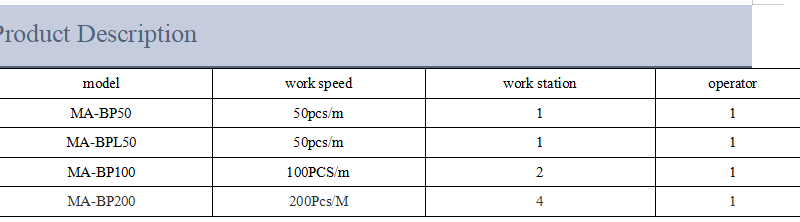

Machines specification:

1. Core Features & Technologies

Intelligent Automation: Equipped with PLC control and advanced sensors (e.g., capacitive proximity switches, optical detectors),

the machine full-automatic assembly of various components, including pen tubes, ink refills, and caps, with error detection and rejection functions.

High Efficiency: Operating rates range from 3,200 to 10,000 pieces per hour, depending on model and configuration.

mechanical transpiration parts:take the use of high efficiency cams combined the precision mac

hinery cam,are driver by the same main power,which can make improvement the

stabilization and life span.

automatically feeding system: feeding by way of vibration,the machine hands installation accura

tely,ensure the feeding stabilization and security high quality.

Ball Point Pen making machine

Intelligent control parts :operation easily by use of high quality PLC and touch panel,along with variable frequency regulating speed technology,

else saves energy
mechanical transpiration parts:take the use of high efficiency cams combined the precision machinery cam,are driver by the same main power,

which can make improvement the stabilization and life span.

automatically feeding system: feeding by way of vibration,the machine hands installation accurately,ensure the feeding stabilization and security high quality

working speed:50-60pcs/min

Work station:double type

power:1.5kw 380V 3P 50Hz

air : 5-6kgf/cm²

Working type :Automatically

Worker:1 people

Cylinder:Airtac Taiwan

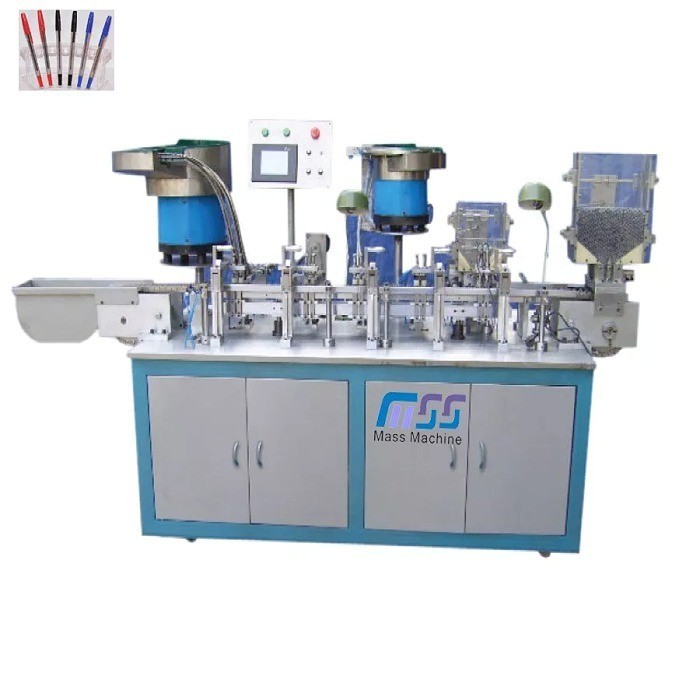

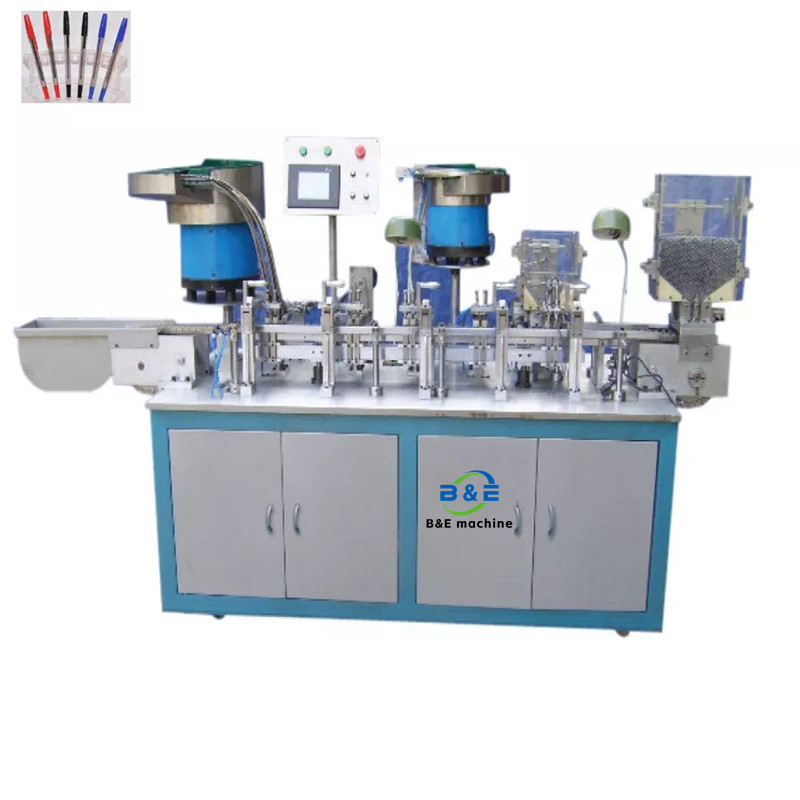

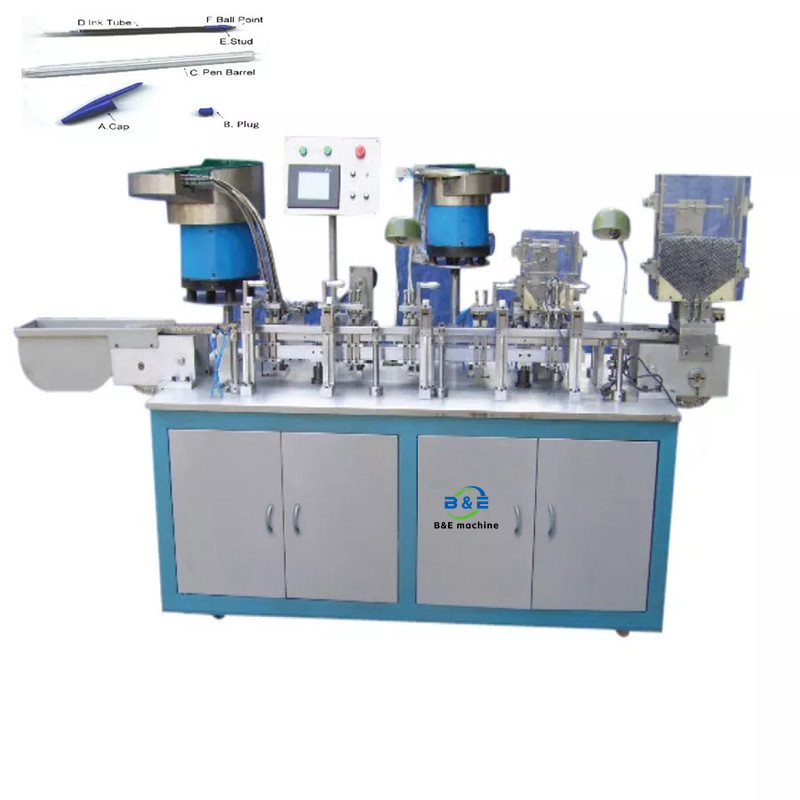

Ball Point Pen making machine Show:
